| Product introduction |
J145X diaphragm type electric remote control valve is installed in all kinds of feeding water system’s pipeline and open or close the valve by manual or electric signal.The valve’s control andreaction is precise and quick.The closing speed is adjustable and the valve can close smoothly not to induce pressure repercussions.It is easy to maintain with three phase solenoid valve. |
|
|

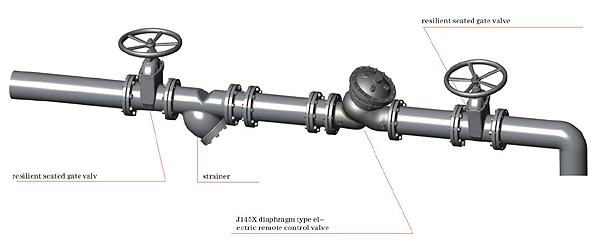

typical installation diagram
|
|
|

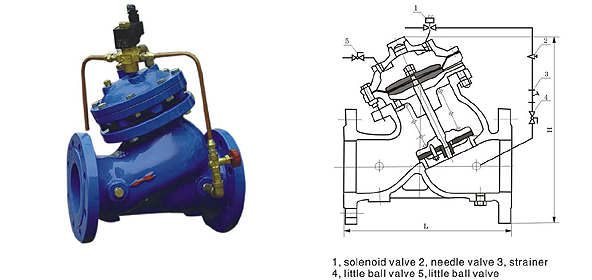

main imensionsunit:mm |
|
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
L |
203 |
216 |
241 |
292 |
330 |
356 |
457 |
533 |
610 |
686 |
762 |
864 |
914 |
1067 |
|
H |
320 |
367 |
400 |
452 |
522 |
592 |
696 |
810 |
943 |
1200 |
1230 |
1230 |
1270 |
1600 | |
