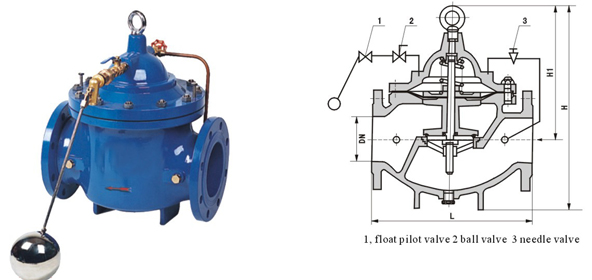

100X REMOTE CONTROL FLOAT BALL VALVE

Product Simple Specification

The main valve is controlled by a float ball valve which locates on the top of tank or reservoir. The valve maintains the maximum water level of tank or reservoir continuously.Product Simple Specification

100X diaphragm control ball valve is a multi-function htdaulic control valve, The water level can be controlled below a preset elevation, This valve can be widely used in influent pipes of the pools and water tower in hig-rise buildings,municipal domestic water systems,fire fighting facilites, factories and mines. When adding a solenoid valve, then comprises another type (i,e,106X), which provides double control to water level,normally used at high overflow prevention project.Pressure Rating: PN10. PN16. PN25/Class150Size Range: DN20mm-DN800mm (3/4" - 32")

The Main Appearance Connects Size ~units~mm
