Product introduction |

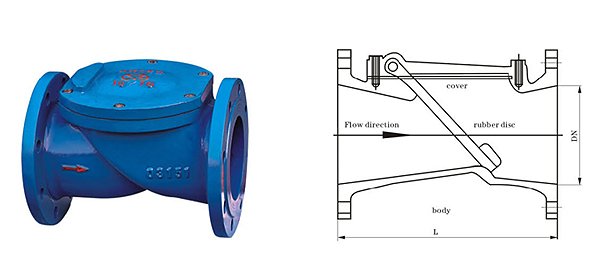

Rubber disc check valve consists of body,cover and rubber disc.Inside of the rubber disc is steel plate,steel bar and reinforced nylon liner and the outside is rubber and the disc life is more than one million open-close cycles.The valve is designed with unimpeded bore,so the pressure loss is very little and no sundries pile up in the body and it is easy to maintain this kind of valve.The valve is used for feeding system and installed at the outlet of the pump to prevent the fluid flowing backward and water hammering.Also it can be installed at the inlet of inlet/outlet’s bypass pipe to prevent the water in the cistern flowing backward into the pipe. |
|
|
Main technical parameters |
|
Nominal pressure: 1.0-1.6
Nominal diameter: 50-600mm
Service:water and weak corrosive fluid
Working temperature:0-80
Flanged end: GB/T17241.6 GB9113
Inspection and test: GB/T 13927 API 598
|
|
|
|
Material |
|
part |
body |
Cover |
disc |
|
material |
Cast iron |
Cast iron |
Steel packed with nylon | |
|
Main dimensionsunit:mm
|
|
DN |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
L |
203 |
216 |
241 |
292 |
356 |
495 |
622 |
698 |
787 |
914 |
978 |
978 |
1295 | |
